The "Factory"
DG Bio Chuck Quote_text2.jpg
detail 8066sk b+w.jpg
CP+B Main Level PLANr_blk sm.jpg
CP+B Mezzanine PLANr_blk sm.jpg
  This project was CP+B's first opportunity to create their own space from scratch. It was our job to create a design that would embody and express the agency's identity.
horizontal / vertical path
 "Public Street"
media boxes_301 6 ky.jpg
Agora
cpb IMG_0694.JPG
 Main circulation spine populated with "billboards"
p_WestAlley_4026_6 ky.jpg
cpb Ipa_ul1176 copy.jpg
p_nStair DET_232_4.jpg

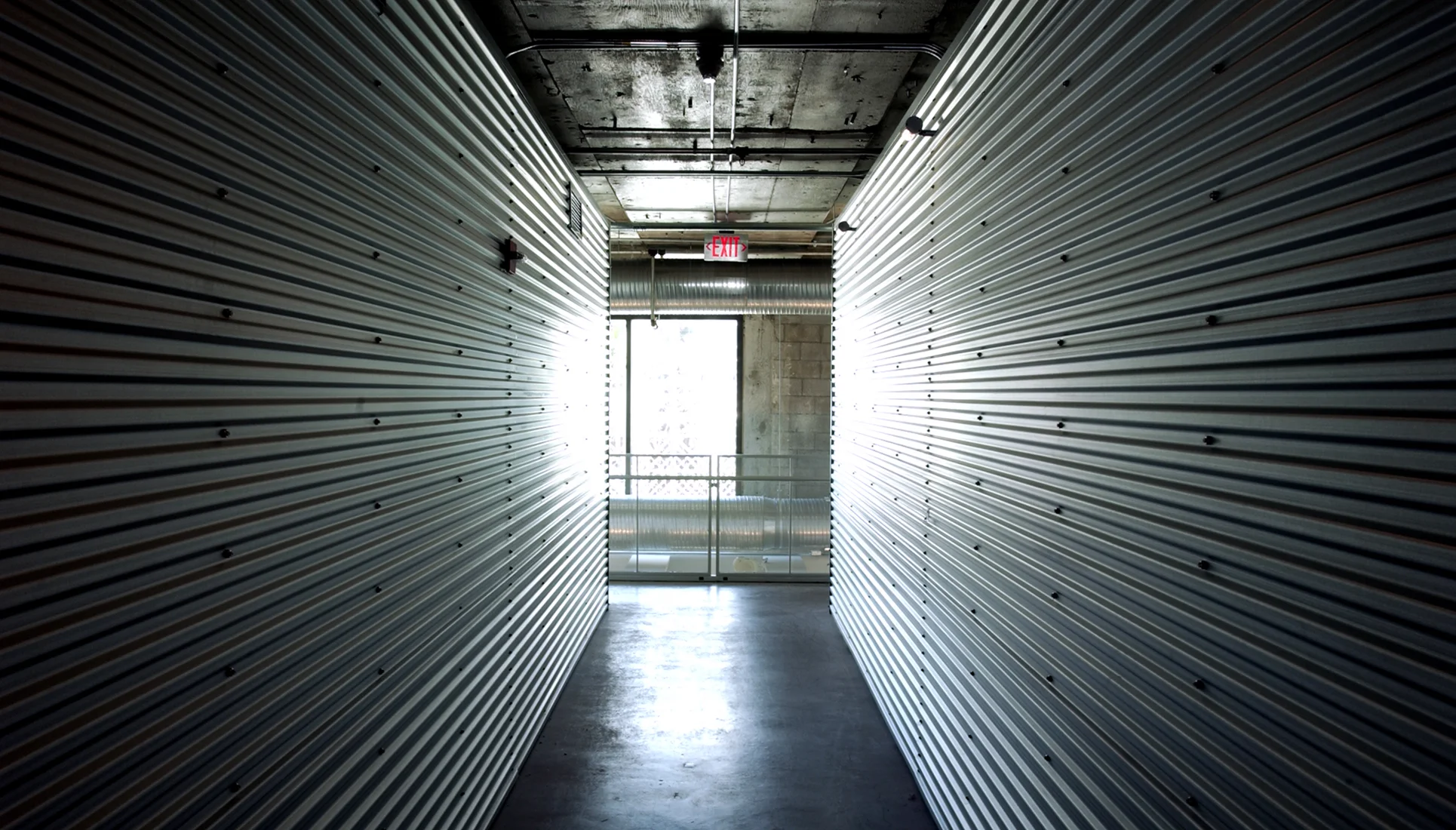

p_mezzHall_4085m2_4 ky.jpg
DETAIL 284b+w ky.jpg
west catwalk_4070 b+w ky.jpg
x_mezz nite_1299 ky.jpg
x_conference_0979sksphc 8x11 ky.jpg
p_Terrace9623_4 ky.jpg
 The idea that defined the design strategy is the notion that an animated, in-your-face, "creative looking" space (typical of many ad agency designs) does not necessarily make the best creative environment.  When I presented this concept in our
terrace_2038mod2 ky.jpg
empty space 7018.jpg

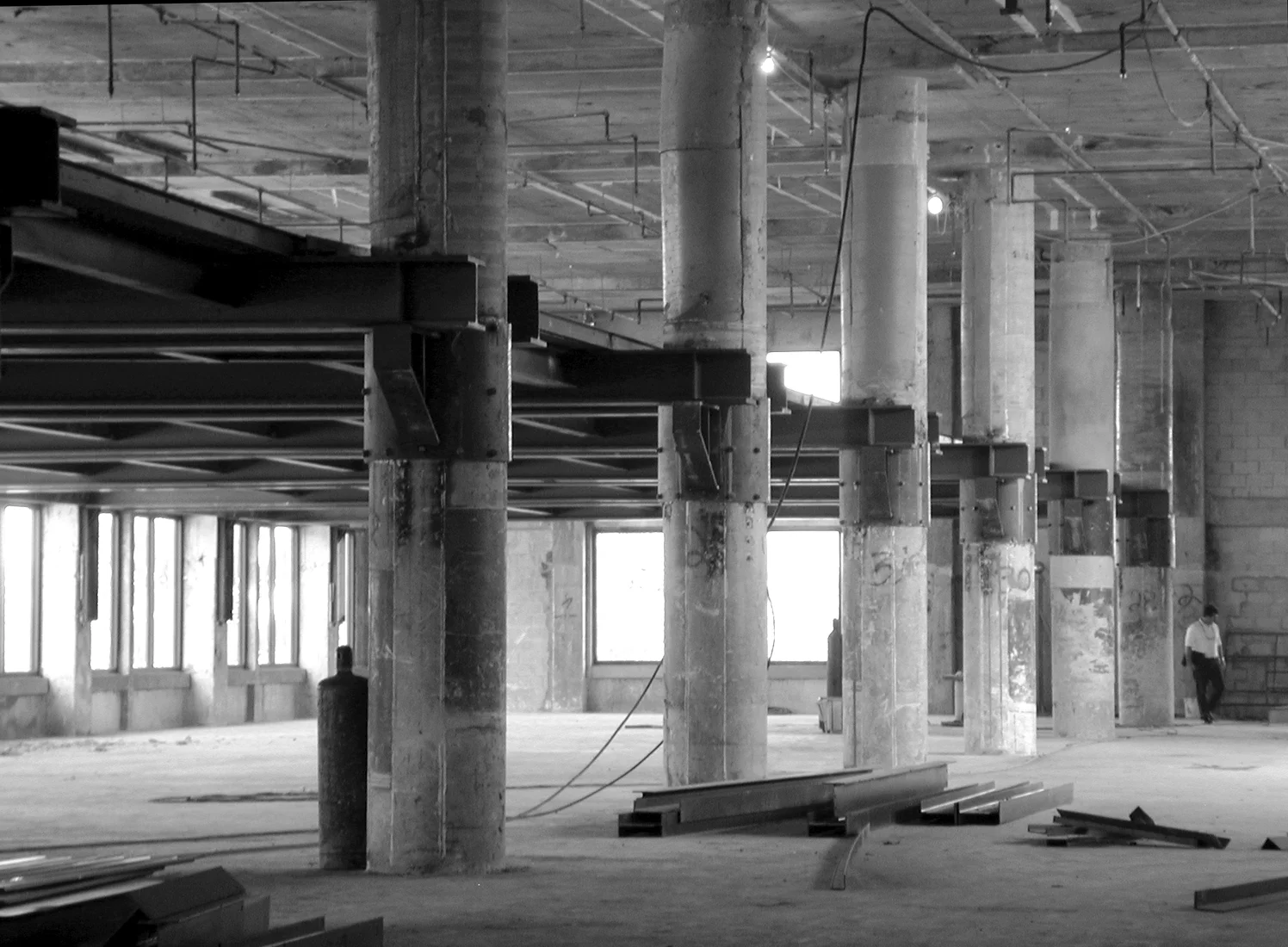

 Constructing the mezzanine: The new steel structure, spanning 50' between the central row of columns and the columns along the exterior wall, attaches to the existing concrete columns with large winged collars. We used pairs of I-beams to minim
 The existing concrete structure was capable of supporting a mezzanine level with a maximum area equal to 1/2 of the floor's footprint. This limitation drove the design strategy of shifting the mezzanine entirely to one side of the central columns.
collar DET 5811.jpg
a frame_6941.jpg
CP+B  Section Elevations_blk sm.jpg
Mezzanine Construction
DSCN6961 copy.jpg
west alley021003.jpg
detail 8082.jpg
cp+b Plan_14x8b.jpg
1st RCP_FLIP_7x8c1.jpg
ExpAXO RT.jpg
RCP Model_14x8c1.jpg
cp+b PlanModels_3+4_2.jpg
cp+b PlanModels_3+4_RTc1.jpg
